Mustang Panda is a well-known APT with a long history of targeting non-governmental organisations (NGOs). It utilizes shared malware like Poison Ivy, PlugX and Cobalt Strike payloads in order to gather intelligence. Since 2008, PlugX as a RAT (Remote Access Trojan) malware family has been used as a backdoor to control the victim’s machine fully. Once the device is infected, an attacker can remotely execute several kinds of commands on the affected system to retrieve machine information, capture the screen, manage services, and manage processes.
Avira’s Advanced Threat Research team, has been tracking Mustang Panda APT for a while. According to Avira’s telemetry data, Mustang Panda mostly targets Asia-Pacific (APAC) countries and uses Cobalt or PlugX as payload.
Avira’s Advanced Threat Research team discovered a new version of PlugX from the Mustang Panda APT that is used to spy on some targets in Hong Kong and Vietnam. The way that the APT actor infects the target, and launches the malicious payload is similar to previous versions—but with some differences.
PlugX executes DLL hijacking with benign applications such as ESET antivirus, Adobe Update etc. However, the way the PlugX loader launches the payload is different from how it was done for the previous versions. Also, the PlugX that Mustang Panda APT uses has some extra features, including spreading through USB, gathering information, and stealing documents in air-gaped networks via USB.
Mustang Panda APT uses a package of binaries to load the actual payload and it is intentionally designed this way to bypass file scanners and sandboxes. PlugX contains 3 files: benign EXE file for DLL hijacking, DLL (just a loader to execute the payload), and the encrypted payload (usually with “.dat” extension). The Advanced Threat Research team at Avira, have found different types of loaders (PlugX loader), and we will discuss it in more detail below. Obviously, file scanners or sandboxes can’t detect the PlugX payload without the encrypted DAT file.
Anomali’s Threat Research Team published a post about this campaign with the focus on the initial infection. In this article, we are going to dig into the PlugX loader and new PlugX payloads that Mustang Panda APT is using to spy on the targets.
First stage: Loader
The Loader is a tiny DLL file, the payload is an encrypted DAT file.
The DLL is responsible for decrypting the DAT file and executing it like a shellcode in memory. It reads the encrypted payload from disk by calling CreateFile and ReadFile APIs, and then allocates memory via VirtualAlloc. After decryption, it changes the protection via VirtualProtect and at the end executes it via direct call instruction.
DLL utilizes junk codes and a simple obfuscation to hide the API calls via stackstrings and load them dynamically.
The DAT file contains the decryption key inside of itself. The size of the key can vary. The loader reads offset zero of encrypted DAT file until it reaches null and takes that as an XOR key to decrypt the rest of the file.
Figure 1: decryption routine for loader
Some of the loaders have hardcoded time inside the binary and they simply decrypt and execute the payload in a specific period of time.
For example, look at the following picture from one of the loader samples with time checking. The date is hardcoded “20190929.”
We have found 15 unique payloads.
We observed these DAT file names from our telemetry:
As explained previously, the payload is executed like a shellcode but surprisingly, it’s a full PE binary. The loader will start the payload from the zero offset of the payload that it means from MZ. The picture below shows a very small crafted shellcode to call the entrypoint.
The decrypted payload is just loaded in memory and there are no footprints on the disk. This is the customized version of PlugX with simple obfuscations to bypass static detection and hide the strings.
Figure 2: crafted shellcode to call the entrypoint
The payload is a DLL with one export function called “Loader.” The shellcode at the beginning calls the “Loader” export function.
The export function does the Windows loader job to load the DLL correctly and then executes the entrypoint.
Payload uses the wrapper function for every API call to obfuscate the API calling mechanism. In the wrapper function, there are stackstrings for the API function name and module name. In the picture below, you can see an example.
It can be executed in 3 different ways:
|no argument||Set a registry key for persistence and create a directory for files and run the malware again with -app|
For the persistence, it uses the registry run key:
It creates %appdata%\Intel directory for additional modules and stolen information.
It uses a set of registry keys for storing data:
"System\CurrentControlSet\Control\Network\Version" → internet access status
"Software\CLASSES\ms-pu\PROXY" → C&C server version
The PlugX TLS value names in the binary:
Initializes C&C communication
|CXOnline::OlStartProcPipe||Initializes pipe communication objects|
Parses C&C commands
|CXSalvation::SalExceptionHandler||Global exception handler for logging in SS.LOG file|
|CXSoHttp::SoWorkProc||Sends requests to the C&C server|
One of the features that distinguishes this variant from other PlugX variants is the capability of spreading through a USB stick. This part of the code is different from other parts of PlugX as we don’t see any TLS value name for this functionality.
After detecting the removable USB volume drive, the PlugX variant creates a hidden folder with name “RECYCLE.BIN” and copies the EXE file, the loader DLL, and encrypted DAT file. Then, it hides all of the folders in the root directory and creates LNK for each one in order to deceive the victim to click on the LNK files.
Air gap network
PlugX checks whether there's no internet access, then tries to find the USB stick and creates the BAT file in the following path, <usb volume>\RECYCLE.BIN\<plugX clsid>\tmp.bat, and executes it. At the end, it deletes the BAT file.
By running this BAT file, it gathers local and network information about the infected system and tries to send it out via USB.
cmd.exe /c systeminfo > <usb volume>\RECYCLE.BIN\<plugX clsid>\sys.info
cmd.exe /c ipconfig /all >> <usb volume>\RECYCLE.BIN\<plugX clsid>\sys.info
cmd.exe /c netstat -ano >> <usb volume>\RECYCLE.BIN\<plugX clsid>\sys.info
cmd.exe /c arp -a >> <usb volume>\RECYCLE.BIN\<plugX clsid>\sys.info
cmd.exe /c tasklist /v >> <usb volume>\RECYCLE.BIN\<plugX clsid>\sys.info
Figure 3: run BAT file for gathering info
It searches the whole system for the following file extensions:
It encrypts the mentioned documents on the fly via RC4, then copies them in its specific folder in the usb: “<usb volume>\RECYCLE.BIN\<plugX clsid>”.
The RC4 key is hardcoded in the payload binary.
From our telemetry data, we found a different way of stealing documents. It abuses RAR to search document files and compress them locally in order to send it to its CNC server.
The command line looks like this:
Rar.exe a -r -ed -m3 -dh -tk -hp<password> -v100m -ta<file modified date after> -n*.doc* -n*.xls* -n*.pdf <compressed file path> <searching directory>
As you can see, it’s looking for a specific date to compress .xls* and .pdf extensions. It also uses a password to encrypt file data and header.
The config can be encrypted or be plaintext in the binary. If the config data starts with “XXXXXXXX,” it means the config is not encrypted.
If the config is encrypted, the config data is decryped via XORring with the hardcoded key inside of the binary. In different payloads that we could find, the key was “123456789”.
Figure 4: check config data before decryption
Figure 5: hardcoded key for config decryption
Figure 6: config decryption routine
Inside the config, there is information about the folder name for PlugX modules, mutex name, C&C IP and domain address, and port number.
We found 17 unique pieces of config data. This is the information we extracted from them:
C&C IP address
ESET Malware ProtectionrYF
ESET Malware ProtectionWgM
ESET Malware ProtectionTCp
ESET Malware ProtectionOWT
ESET Malware Protectionmld
Microsoft Malware ProtectionGCg
Microsoft Malware Protectionfpx
Microsoft Malware ProtectionwSA
Microsoft Malware ProtectionpiW
Microsoft Malware ProtectionSaG
Microsoft Malware ProtectionDQA
Microsoft Malware ProtectioncdB
Microsoft Malware ProtectionNSP
Microsoft Malware ProtectionGHQ
Adobe Update HelpereQU
Adobe Update HelperzGI
Adobe Update HelperatX
Interestingly, we could also find the test sample that the malware author may have used to test the malicious binary before releasing with the IP address 127.0.0.1 for C&C in the config data.
The PlugX variant uses a new way to communicate to its C&C server but it also supports the old communication mechanism. So, when it initializes the connection and gets the C&C version, it can decide how to communicate.
The CNC commands in this PlugX variant are similar to other versions with some minor differences.
It has 2 different groups of commands: group IDs 0x1001 and 0x1002. Once it gets the C&C group ID, it decides how to respond to the commands.
For command group ID 0x1001:
|0x1001||get system information → memory status, computer name, username, OS version, PlugX CLSID, cpu speed, cpu architecture, width and height of screen|
|0x1002||start pipe communication → CXOnline::OlStartProcPipe|
|0x1003||echo input back|
For command group ID 0x1002:
|0x3000||get disk information|
|0x300B||check if the file existed|
|0x300C||create process in hidden desktop|
|0x300D||file operation (rename, move, delete, copy)|
|0x300E||get expanded environment information|
|0x300F||get plugX directory|
Old communication mechanism
It uses HTTP post request to start the communication. The URL it uses to send the request to the server is “/update?wd=<random 8 digit number>”
It uses this hardcoded user-agent:
Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1;
It adds these parameters to the HTTP request header
x-debug x-request x-content x-storage
New communication mechanism
PlugX sends an encrypted random ID to initialize the connection via raw TCP and then receives a response from server.
The first 16 bytes are the header:
- The first 4 bytes are the encryption key.
- The second 4 bytes are CNC command code (the 29th bit shows whether the data is compressed and 30th bits shows whether the data is encrypted).
- The next 2 bytes show the size of data (16 bytes header is not included).
- The header is encrypted as well with the first DWORD sent by the server.
Figure 7: structure of C&C communication header
The encryption algorithm used for communication is XOR but adds a hardcoded value to the key for every round of encryption. The hardcoded value for the binaries that we found was “6666”.
Figure 8: decryption routine for communication data
The Mustang Panda APT actor uses PlugX with minor changes, in an attempt to evade detection. This time, we found new features, new config structure, and loader—which caught our attention.
Loading the payload in multiple stages with different modules and encrypted data is a well-known technique but still quite effective to bypass sandbox systems and file scanners.
It is always challenging to have all of those modules together in order to reach the final payload.

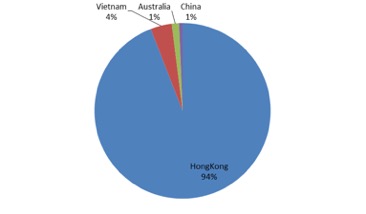

Based on our telemetry, we found several victims from Hong Kong, Vietnam, Australia, and China but most of the victims are from Hong Kong.
Learn how Avira prevents zero-day attacks, detect targeted malware and deliver the highest detection rates in the cyber-security industry.
Indicators of Compromise
